TBF Bag Filter Housing

Model:

TBF Bag Filter (Topline)

Application:

Liquid Filtration

Media:

Nominal, NMO & Absolute Bags & Cartridges

Bag Size 01:

20 m³/hr, depending on element and fluid viscosity

Bag Size 02:

40 m³/hr, depending on element and fluid viscosity

Manufacturing

ASME, In accordance to ISO 9001 Quality Management System, "U Stamp" Available

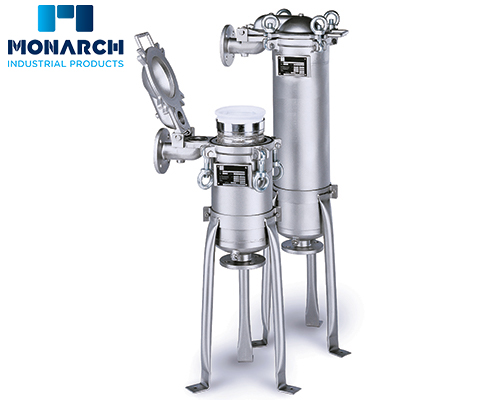

TBF single bag filter housing with top inlet and bottom outlet is an excellent choice for industrial and commercial applications. Fluid enters directly to the centre of the bag, minimizing turbulence during the filtration process. The heavy duty cast housing, combined with a hinged cover and swing-bolt closure is designed for high pressure applications.

Specifications
Features
Standard Units
Downloads
Quote Request
Related Products

Material:

304, 304L, 316, 316L

Seals:

Buna-N, EPDM, Silicone, Viton, Teflon, Teflon Encapsulated Viton Rubber, Teflon Encapsulated Silicone, Neoprene, Butyl Rubber

Connections:

BSP, NPT, DIN, ANSI

Connection Sizes:

DN50 (2")

BSP, NPT, DIN, ANSI

Pressure:

10 bar

Bag Sizes:

01 and 02

Support Legs:

Height Adjustable (Included)

Eye Bolts:

Zinc Plated (Standard)

Options:

U Stamp Certification
Polished Surfaces
304 S/Steel Eye Bolts
Stainless Fine Mesh Baskets

Features

Improved efficiency and longer lifetime of filter bags as fluid enters the center of the bag directly, minimizing turbulences.
Easy to install adjustable mounting legs.
Cast construction results in a compact, yet heavy-duty design.
Cover directly compresses the filter bag seal-ring, eliminating the possibility of bypass.
Hinged cover opens and closes quickly and easily, adapting to different opening directions.
Easy bag change-out.
Flange or thread connection.

Applications

Pulp and Paper
Food and Beverage
Metal Working Fluids
Chemical Processing
Paints, Inks, Resins and Coatings
Automotive
Electronics
Pharmaceutical
Petrochemicals

01 Size Housings

Code: TBF-0101-BB10-020A

01 Size Bag
304 Stainless Steel
10 Bar Pressure
2" ANSI Flanges

Code: TBF-0101-AB10-020A

01 Size Bag
316 Stainless Steel
10 Bar Pressure
2" ANSI Flanges

02 Size Housings

Code: TBF-0102-BB10-020A

02 Size Bag
304 Stainless Steel
10 Bar Pressure
2" ANSI Flanges

Code: TBF-0102-BB10-020A

02 Size Bag
316 Stainless Steel
10 Bar Pressure
2" ANSI Flanges

Example Datasheet (304)

TBF 01 & 02 (304)

TBF 01 & 02 (304) with Heat Jacket

Example Datasheet (316)

TBF 01 & 02 (316)

TBF 01 & 02 (316) with Heat Jacket

To assist us in providing a quotation or recommendation, please provide as much detail of your application as possible.

Contact Information

Please provide detailed contact information.

Special Requirements

Please provide details of any special requirements, lead times, certification or documentation etc.

Application

Liquid Type
Flow rate
Viscosity
System Pressure
Temperature
Micron Removal Size
Solids Loading
Particle Type (hard, soft, sticky, fibrous)

Equipment Details

Material
Connection Type
Connection Size
Seal Type

Filter Media

Accessories

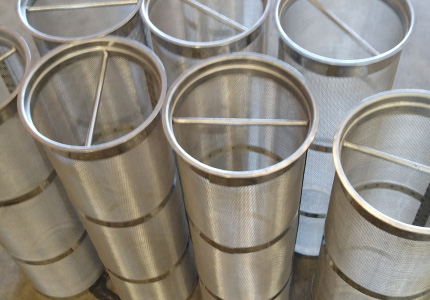

Fine Mesh Baskets
