TH (Mini) Bag Filter Housing

Model:

TH-Mini Bag Filter

Application:

Liquid Filtration

Media:

Nominal, NMO & S/Steel Baskets

Bag Size 03:

6 m³/hr, depending on element and fluid viscosity

Bag Size 04:

12 m³/hr, depending on element and fluid viscosity

Manufacturing

ASME, In accordance to ISO 9001 Quality Management System

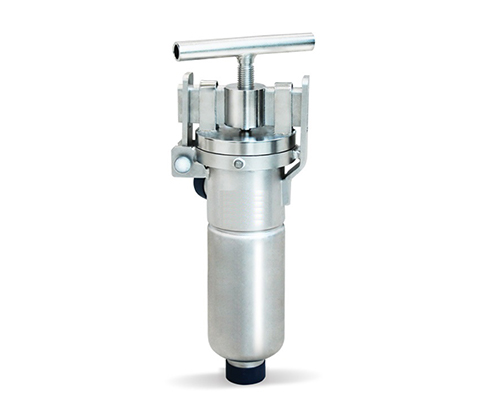

The T-Handle filter housing is a small single bag filter in size 03 and 04, featuring a unique Quick Open cover and side inlet/bottom outlet design. This housing is capable of handling higher operating pressures and a wider range of piping connections.

Suitable for various industrial fluid filtration applications.

Specifications
Features
Standard Units
Downloads
Quote Request
Related Products

Material:

304, 304L, 316, 316L

Seals:

Buna-N, EPDM, Silicone, Viton, Teflon, Teflon Encapsulated Viton Rubber, Teflon Encapsulated Silicone, Neoprene, Butyl Rubber

Connections:

BSP, NPT, DIN, ANSI

Connection Sizes:

DN40 (1-1/2")

Pressure:

21 bar (304 psi) @ 150°C

Bag Sizes:

03 and 04

Closure:

All Stainless Steel T-Handle

Features

Design pressure up to 21 bar.
T-Handle Quick Open Lid.
Small housing reduces fluid loss during change out.
An integrated bag seat provides ease of cleaning of inner walls.
Lateral flow design prevents fluid splashing.
High quality electrolytic polished basket to support filter bag.

Applications

Water
Food and Beverage
Metallurgy
Chemicals
Paints, Graphite, Resins
Automotive
Electronics
Petrochemicals

03 Size Housings

Code: TH-0103-BB21-040B

03 Size Bag
304 Stainless Steel
21 Bar Pressure
1-1/2" BSP

Code: TH-0103-AB21-040B

03 Size Bag
316 Stainless Steel
21 Bar Pressure
1-1/2" BSP

04 Size Housings

Code: TH-0104-BB21-040B

04 Size Bag
304 Stainless Steel
21 Bar Pressure
1-1/2" BSP

Code: TH-0104-AB21-040B

04 Size Bag
316 Stainless Steel
21 Bar Pressure
1-1/2" BSP

Brochure and Datasheet Downloads

T-Handle 03 & 04 Bag Filter Brochure

I.O. Manual

To assist us in providing a quotation or recommendation, please provide as much detail of your application as possible.

Contact Information

Please provide detailed contact information.

Special Requirements

Please provide details of any special requirements, lead times, certification or documentation etc.

Application

Liquid Type
Flow rate
Viscosity
System Pressure
Temperature
Micron Removal Size
Solids Loading
Particle Type (hard, soft, sticky, fibrous)

Equipment Details

Material
Connection Type
Connection Size
Seal Type

Filter Media

Accessories

Fine Mesh Baskets
