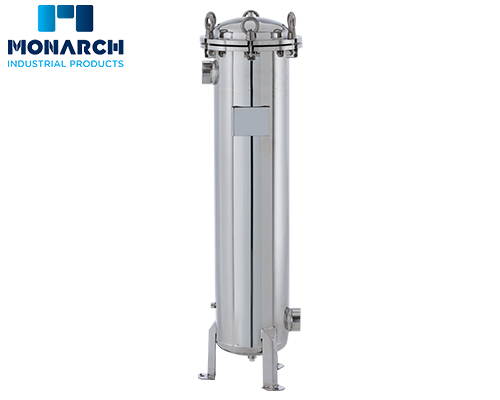

DL Series Bag Filter Housing

Model:

DL Bag Filter

Application:

Liquid Filtration

Media:

Nominal, NMO & Absolute Bags & Cartridges

Bag Size 01:

20 m³/hr, depending on element and fluid viscosity

Bag Size 02:

40 m³/hr, depending on element and fluid viscosity

Manufacturing

ASME, In accordance to ISO 9001 Quality Management

The DL Series Stainless Steel Bag Filter Housings are a suitable choice for many commercial and industrial applications with cost sensitive budgets.

Heavy duty construction and design assure protection for all downstream equipment. Single Liquid Bag Housings effectively reduce dirt, pipe scale, and other contaminants from process liquids. Unfiltered liquid enters the housing from the top side port and continues through the filter bag and exits out the lower side port. Solids are trapped inside the filter bag and are easily removed when the housing is serviced.

Specifications
Features
Standard Units
Downloads
Quote Request
Related Products

Material:

304, 316L

Seals:

Buna-N, EPDM, Viton

Connections:

BSP

Connection Sizes:

(2")

Pressure:

10 bar

Bag Sizes:

01 and 02

Support Legs:

Included

Eye Bolts:

Stainless Steel

Options:

Stainless Fine Mesh Baskets

Features

Cost effective housing for most applications
Each vessel is hydro-tested
Low pressure drop
Quick-swing bolt top cap allows for easy servicing
2 x Pressure gauges included
Polished exterior
Easy bag change-out.

Applications

Water
Pulp and Paper
Food and Beverage
Metal Working Fluids
Chemical Processing
Automotive
Electronics

01 Size Housings

Code: DL304SS20BF

01 Size Bag
304 Stainless Steel
10 Bar Pressure
2" BSP

Code: DL316LSS20BF

01 Size Bag
316L Stainless Steel
10 Bar Pressure
2" BSP

02 Size Housings

Code: DL304SS40BF

02 Size Bag
304 Stainless Steel
10 Bar Pressure
2" BSP

Code: DL316LSS40BF

02 Size Bag
316L Stainless Steel
10 Bar Pressure
2" BSP

Brochure and Drawing

To assist us in providing a quotation or recommendation, please provide as much detail of your application as possible.

Contact Information

Please provide detailed contact information.

Special Requirements

Please provide details of any special requirements, lead times, certification or documentation etc.

Application

Liquid Type
Flow rate
Viscosity
System Pressure
Temperature
Micron Removal Size
Solids Loading
Particle Type (hard, soft, sticky, fibrous)

Equipment Details

Material
Connection Type
Connection Size
Seal Type

Filter Media

Accessories

Fine Mesh Baskets
