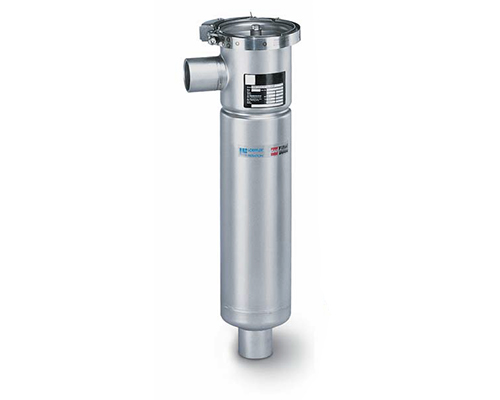

EBF (Mini) Bag Filter Housing

Model:

EBF Bag Filter (EBF Miniline)

Application:

Liquid Filtration

Media:

Nominal, NMO & S/Steel Baskets

Bag Size 03:

6 m³/hr, depending on element and fluid viscosity

Bag Size 04:

12 m³/hr, depending on element and fluid viscosity

Manufacturing

ASME, In accordance to ISO 9001 Quality Management System

The EBF (ECOLINE) light-weight bag filter housings combine quality and value. Often the best choice for cost-sensitive applications, they are easy to install and feature a quick-opening V-clamp cover for easy bag change-out.

Specifications
Features
Standard Units
Downloads
Quote Request
Related Products

Material:

304, 316

Seals:

Buna-N, EPDM, Viton

Connections:

BSP

Connection Sizes:

DN40 (1-1/2")

Pressure:

6 bar

Bag Sizes:

03 and 04

Closure:

All Stainless Steel V Clamp

Features

Side inlet piping connections
Buna N cover seal
Viton basket seal
Stainless steel basket
Concave cover with V-clamp closure

Applications

Water
Food and Beverage
Metallurgy
Chemicals
Paints, Graphite, Resins
Automotive
Electronics
Petrochemicals

03 Size Housings

Code: EBF-0103-BB09-040B

03 Size Bag
304 Stainless Steel
9 Bar Pressure
1-1/2" BSP

Code: EBF-0103-AB09-040B

03 Size Bag
316 Stainless Steel
9 Bar Pressure
1-1/2" BSP

04 Size Housings

Code: EBF-0104-BB09-040B

04 Size Bag
304 Stainless Steel
9 Bar Pressure
1-1/2" BSP

Code: EBF-0104-AB09-040B

04 Size Bag
316 Stainless Steel
9 Bar Pressure
1-1/2" BSP

Example Datasheet (304)

EBF 03 & 04 (304)

Example Datasheet (316)

EBF 03 & 04 (316)

To assist us in providing a quotation or recommendation, please provide as much detail of your application as possible.

Contact Information

Please provide detailed contact information.

Special Requirements

Please provide details of any special requirements, lead times, certification or documentation etc.

Application

Liquid Type
Flow rate
Viscosity
System Pressure
Temperature
Micron Removal Size
Solids Loading
Particle Type (hard, soft, sticky, fibrous)

Equipment Details

Material
Connection Type
Connection Size
Seal Type

Filter Media

Accessories

Fine Mesh Baskets
