Monarch Industrial Products Filters and Strainers

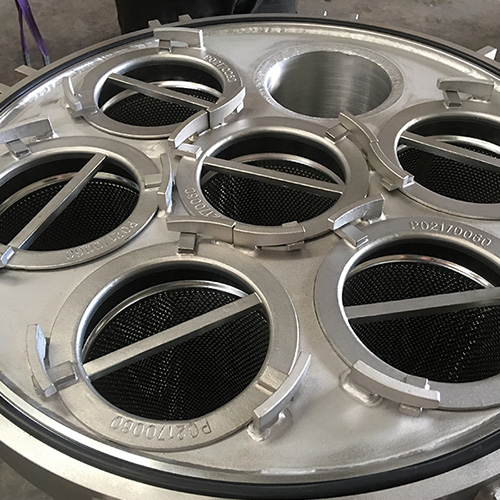

Multi-Bag Filter Housings for Liquid Filtration

Multi-bag housings offer user friendly, cost effective bag filtration for high volume applications. Housing size is established based on factors such as Flow rate, Liquid Viscosity and Solids Loading.

Flow rate capability example:
4 bag housing is rated at 160,000 lt per hour @ 1 c.p. nominal rated bag (4 x 40,000 lt per hour)
6 bag housing is rated at 240,000 lt per hour @ 1 c.p. nominal rated bag (6 x 40,000 lt per hour)


Multi bag filter housing, Quick open
Quick Open Cover with Pressure Relief valve
Material: 304, 304L, 316, 316L (Titanium and other materials on request)
Pressure: 10 bar @ 150°C
Connections: ANSI, DIN, Table
Bag Sizes: 01 and 02
No. of bags: 3, 4, 6, 8, 12, 17, 23

Multi bag filter housing, Bolted closure
Swing Eye Bolt or Stud Bolt Cover
Material: 304, 304L, 316, 316L (Titanium and other materials on request)
Pressure: 10 bar @ 150°C (higher pressure options available)
Connections: ANSI, DIN, Table
Bag Sizes: 01 and 02
No. of bags: 3, 4, 6, 8, 12, 17, 23

Multi bag filter housing, Bolted closure
Quick Open, Swing Eye Bolt or Stud Bolt Cover
Material: 304, 304L, 316, 316L (Titanium and other materials on request)
Pressure: 10 bar @ 150°C (higher pressure options available)
Connections: ANSI, DIN, Table
Basket Sizes: 01 and 02
No. of Baskets: 3, 4, 6, 8, 12, 17, 23
