Simplex Basket Strainers in Carbon Steel

Simplex basket strainers are used where the process can be shut down for short periods to clean or change baskets.

Show All 150# Units 300# Units

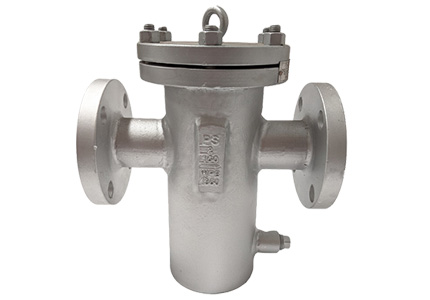

Oxford XSC Simplex Basket Strainer in Carbon Steel

Oxford XSC-150#

Eye Bolt Cover, Epoxy Painted

Material: Carbon Steel A216 Gr. WCB

Class: 150#

Connections: ANSI, Table, PN16, BSP and NPT

Flanged: 1", 1-1/2", 2", 2-1/2", 3", 4", 6", 8", 10", 12"

Threaded: 1", 1-1/2", 2", 2-1/2"

Product Information »

(PDF) Brochure »

Model 72 Simplex Basket Strainer in Carbon Steel

Model 72 Carbon Steel-150#

Quick Open Cover, Epoxy Painted

Material: Carbon Steel A216 Gr. WCB

Class: 150#

Connections: ANSI and NPT

Flanged: 1", 1-1/2", 2", 2-1/2", 3", 4", 5", 6", 8"

Threaded: 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"

(PDF) Brochure »

I.O. Manual »

Replacement Baskets

Titan BS35 Simplex Basket Strainer in Carbon Steel

Titan BS35-CS-150#

Bolted or Quick Open Cover, Epoxy Painted

Material: Carbon Steel A216 Gr. WCB

Class: 150#

Connections: ANSI and NPT

Flanged: 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4", 6", 8"

Threaded: 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"

(PDF) Brochure »

I.O. Manual »

Titan BS35-CS-300#

Bolted Cover, Epoxy Painted

Material: Carbon Steel A216 Gr. WCB

Class: 300#

Connections: NPT

Threaded: 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"

(PDF) Brochure »

I.O. Manual »

Titan BS85 Simplex Basket Strainer in Carbon Steel

Titan BS85-CS-150#

Bolted or Quick Open Cover, Epoxy Painted

Material: Carbon Steel A216 Gr. WCB

Class: 150#

Connections: ANSI

Flanged: 2", 2-1/2", 3", 4", 6", 8", 10", 12"

(PDF) Brochure »

I.O. Manual »

Titan BS86 Simplex Basket Strainer in Carbon Steel

Titan BS86-CS-300#

Bolted Cover, Epoxy Painted

Material: Carbon Steel A216 Gr. WCB

Class: 300#

Connections: ANSI

Flanged: 2", 2-1/2", 3", 4", 5", 6", 8", 10", 12"

(PDF) Brochure »

I.O. Manual »
