Simplex Strainer, Simplex Basket Strainer Oxford XSC Carbon Steel

Model:

Oxford XSC Carbon Steel Basket Strainer

Application:

Liquid Strainer

Media:

Stainless Steel Basket

Oxford Filtration Model XSC Series simplex strainers provide a simple cost-effective way to separate particle impurities from fluid flow systems.

Simplex models described in this brochure are designed for applications where temporary interruption of a batch process can be permitted for basket cleaning.

All strainers are individually pressure tested.

Specifications
Baskets
Sizing
Codes
Downloads/CAD
Quote Request

Material:

Carbon Steel, ASTM A216 GRADE WCB

Seals:

Buna-N, EPDM, Silicone, Viton, Teflon, Teflon Encapsulated Viton Rubber, Teflon Encapsulated Silicone, Neoprene, Butyl Rubber

Pressure:

150#

Eye Bolts:

Zinc Plated (Standard)

Options:

Differental Pressure Indicator
Magnets
Heating jacket

Connections:

ANSI, Table, PN16, BSP and NPT

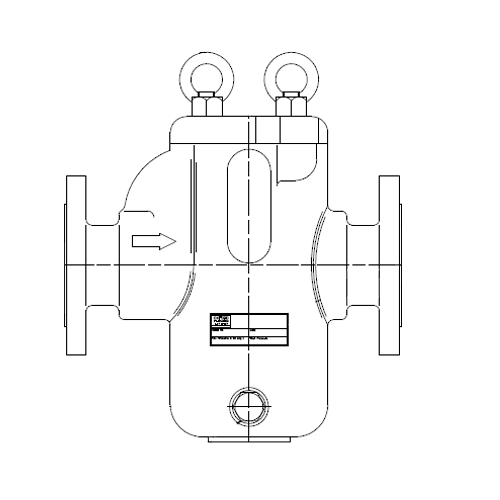

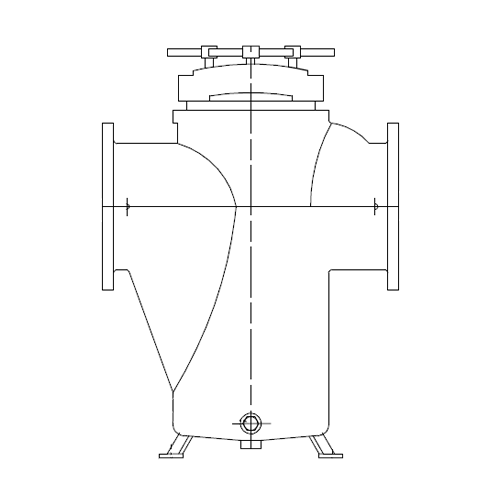

Flange Sizes:

1", 1-1/2", 2", 2-1/2", 3", 4", 6", 8", 10", 12"

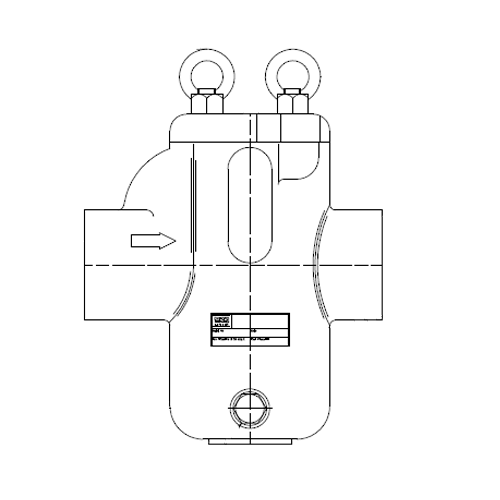

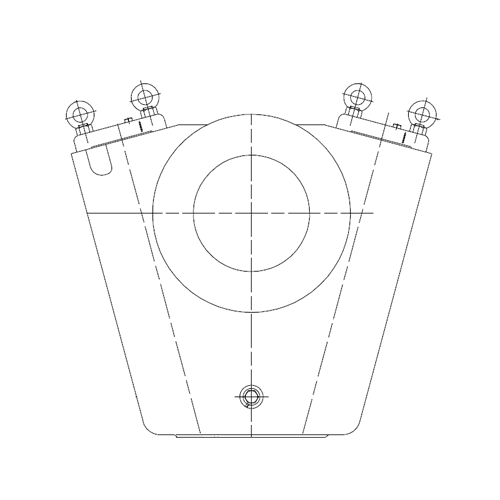

Threaded Sizes:

1", 1-1/2", 2", 2-1/2"

Perforated (Imperial)

1/32", 3/64", 1/16", 1/8", 5/32", 3/16", 1/4", 3/8", 1/2"

Perforated (mm)

0.5, 0.8, 1, 1.5, 2, 3, 4, 5, 6, 8, 10, 12mm

Fine Mesh

20, 40, 60, 80, 100, 150, 200, 325, 400

Custom Sizes

One of the most important design considerations when purchasing a strainer is specifying the perforation or mesh size of the straining element. If the removal size required is not listed, please contact our sales team.

Factors to be Taken Account of when Selecting a Strainer:

Fluid type
Flow rate
Viscosity
Temperature – operating and design
Pressure – operating and design
Degree of filtration required
Connection type i.e. flanged PN16, ASA150, screwed BSP, NPT
Any special requirements i.e. heating jacket, magnets, mounting brackets, dp indicator/switch etc.

Please refer to brochure for mesh basket correction factors.

Codes Flanged:

DN25

XSC25F-*

DN40

XSC40F-*

DN50

XSC50F-*

DN65

XSC65F-*

DN80

XSC25F-*

DN100

XSC100F-*

DN150

XS150F-*

DN200

XSC200F-*

DN250

XSC250F-*

DN300

XSC300F-*

Codes Threaded:

DN25

XSC25S-**

DN40

XSC40S-**

DN50

XSC50S-**

DN65

XSC65S-**

* Flange Type:

ANSI, PN16, Table E, etc.

** Thread Type:

BSP, NPT, etc.

Brochure and Datasheet Downloads

Oxford Simplex Strainer Brochure

I.O. Manual

Simlex Strainer CAD Drawings

CAD Drawings
