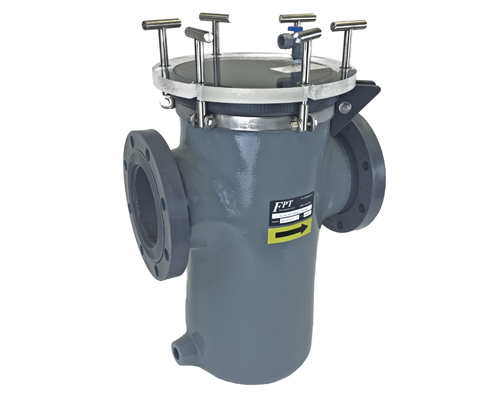

Fluidtrol SW Basket Strainer

Model:

SW1

Application:

Liquids

Manufacturing

ISO 9001:2008 Certified

The SW Series is one of the most popular basket strainer for standard aquatic applications. The SW hair and lint strainer design has been in production for over 20 years offers high level of performance and reliability. The SW Basket strainer is user friendly and is the premier choice for many aquatic applications and some light duty industrial environments..

The SW is available in strainer sizes up to 24” and can be configured with in-line, offset, angled offset, or boot bodies.

Features
Specifications
Downloads
Quote Request

Features

Composite construction offers corrosion resistance of PVC and the mechanical strength of fiberglass.
Molded FRP Body contoured for minimal form drag.
Engineered for very low-pressure drops making it an excellent choice for pump suction applications.
Best in class hardware and accessories.
Customizable dimensions and features.

Configurations options

In-Line (Standard)
Off-set
Angeled Off-set
Boot

Basket Material:

316 S/S (Standard)
PVC

Basket Sizes:

1/4" HOLES ON 3/8" Staggered
1/8" HOLES ON 3/16" Staggered (Standard)
3/16" HOLES ON 1/4" Staggered
5/32" HOLES ON 3/16" Staggered
1/16" HOLES ON 3/32" Staggered
SPECIAL PERF OR LINER (Specify Size)

Connection Types:

Flanged (Standard)
Threaded up to 4”

Conection Sizes:

3", 4”, 6”, 8”, 10”, 12”, 14”, 16”, 18”, 20”, 24”

Acrylic Lid

Clear acrylic lid features almost crystal clarity and weather-ability. Lid thickness depends on size of strainer. 10” and below have 1” thick lids. 12” and above have thicker lids.

Flange Connection

All strainers are supplied with loose rig flanges. PVC strainers utilise SCH 80 flanges produced from PVC type 1 and conform to ANSI B16.5,Class 150- up to 12” in size. Fabricated flanges utilising PVC and FRP are provided for 14” and larger.

Flow Rate

Sized for typical commercial aquatic flow velocities in respective strainer inlet pipe size.

Lid Attachment Assembly

Machined from solid 304 SS bar and should outlast the strainer. Number of T-handles depends on size of strainer, e.g., 10” and below has 6 x T-Handles.

Standards

AWSD1.1 AWSD1.3 ASME B31.4 ASME B31.9

Strainer Identification

All strainers are given labels with a serial number for future reference. Complete records are kept at the factory. In the event an end user needs assistance, parts or replacement, Fluidtrol is able to identify the exact strainer. Even special circumstances of each individual unit can be filed.

Brochures

SW Brochure and Spec Sheet

SW Operation Manual

To assist us in providing a quotation or recommendation, please provide as much detail of your application as possible.

Contact Information

Please provide detailed contact information.

Special Requirements

Please provide details of any special requirements, lead times, certification or documentation etc.

Application

Liquid Type
Flow rate
Viscosity
System Pressure
Temperature
Micron Removal Size
Solids Loading
Particle Type (hard, soft, sticky, fibrous)

Equipment Details

Material
Connection Type
Connection Size
Seal Type
