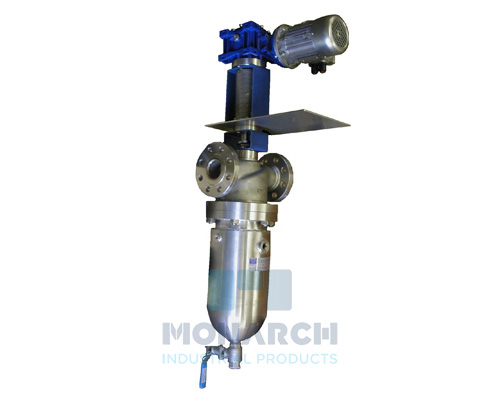

Self Clean Filter High Pressure

Model:

XCLPS-HP Self Clean Filter, Manual or Auto Operation

Application:

Liquid Filtration

Media:

Stainless Steel Wedge Wire

Blade-type self-clean filters

Oxford XCLPS-HP blade style self clean filters are used for the filtration of virtually all fluids from water to very high viscosity fluids where the filter is cleaned without the operator accessing the unit or even on a completely automatic basis with no operator involvement in the cleaning operation.

Oxford Filtration's innovative self-clean filter technology offers you improved output, greater efficiency and consistent quality in a cost-effective and reliable package which is supported by our excellent pre and after sales care.

New!
Service Videos now available, please click below tab

Material:

316 Stainless Steel

Connections:

Table, DIN, ANSI

Element Sizes:

From 50 micron

Closure:

Flanged Bowl

Flange Sizes:

DN50, DN65, DN80, DN100, DN150, DN200, DN250, DN300

Pressure:

50 Barg (725 psi) @ 50°C

Options:

Chemical compatible seals
Automation Package

Features

Element cleaning without stopping or disrupting the fluid flow.
Element cleaning without significate fluid loss.
Fully enclosed system.
No operator contact with the fluid, ideal for hazardous or sensitive applications.
No externally introduced contamination issues, increases confidence in the quality of the filtered product.
Clean operating area and easy environmental contamination control.
Suitable for virtually all fluids of all viscosity levels.

Applications

Paint and coatings industry
Used as a fully automated quality control measure to ensure paint, ink , varnish etc is free of unwanted particulates in the process and filling lines. Used to replace paint bag filters, open sieves and other more labour intensive filtration methods.
Chemical industry
Used for filtering process chemical liquids on a automated basis to protect pipeline equipment, as a quality control measure and replacing more manual methods of filtration generally.
Paper industry
Frequently used for process water for example in the protection of spray nozzles on paper making machinery and also used on raw water intake and cooling water.
Power
Used on industrial water for cooling and the filtration of sealing water to increase the service life of turbine shaft seals.
Water industry
Used throughout the industry for straining of raw water usually before other finer filtration methods and on waste water treatment plant etc.
Food
Used on suitable applications for example in the chocolate industry as a quality control measure and in the meat industry for process water filtration.

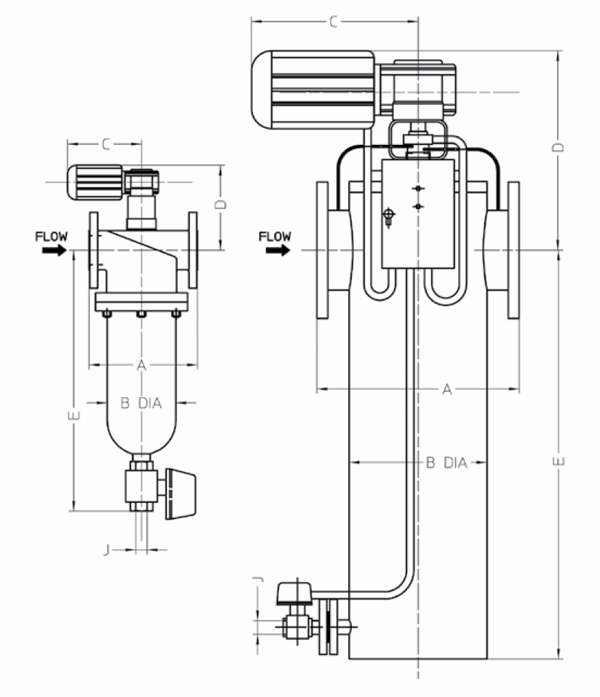

Flanged Units (mm)
Size	A	B	C	D	E	J
50	325	157	260	245	555	3/4"
80	360	190	260	255	645	1-1/2"
100	550	280	345	380	880	1-1/2"
150	550	406	345	560	1170	1-1/2"
200	870	700	345	560	1170	1-1/2"
250	1000	800	345	560	1170	1-1/2"
300	1100	865	345	560	1170	1-1/2"

Factors to be Taken Account of when Selecting a Strainer:

Fluid type
Flow rate
Viscosity
Temperature – operating and design
Pressure – operating and design
Degree of filtration required
Connection type i.e. flanged PN16, ASA150, screwed BSP, NPT
Any special requirements i.e. heating jacket, magnets, mounting brackets, dp indicator/switch etc.

Please refer to brochure for mesh basket correction factors.

To assist us in providing a quotation or recommendation, please provide as much detail of your application as possible.

Contact Information

Please provide detailed contact information.

Special Requirements

Please provide details of any special requirements, lead times, certification or documentation etc.

Application

Liquid Type
Flow rate
Viscosity
System Pressure
Temperature
Micron Removal Size
Solids Loading
Particle Type (hard, soft, sticky, fibrous)

Equipment Details

Material
Connection Type
Connection Size
Seal Type
