Eaton GAF FLOWLINE Bag Filter Housing or Bag Filter VesselPlease note:
Only flanged units in sizes 01 & 02 are currently stocked.

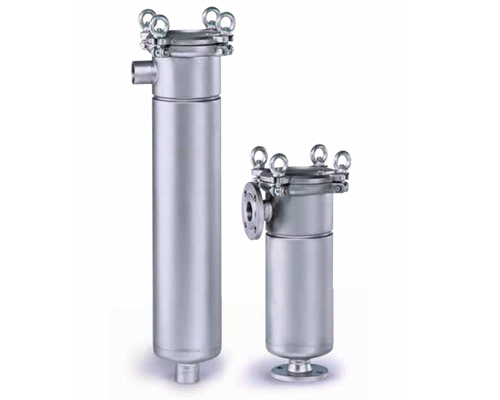

Eaton GAF FLOWLINE Bag Filter Housing or Bag Filter Vessel

A Versatile, Cost Effective Vessel for Heavy Duty Applications

A FLOWLINE vessel is a great choice for industrial, commercial and OEM applications. Its cost-effective design incorporating all of the features heavy duty applications demand, including an investment cast swing bolt cover that can be adapted to different opening directions in the field and a quality stainless steel mesh restrainer basket for reduced pressure drop.

FLOWLINE’s stainless steel construction ensures years of trouble-free, consistent performance at an economical price.

  • For filter bags sizes 01 and 02.
  • 01 Size Vessel: 20,000 lt per hour flow for Nominal rated bags.
  • 02 Size Vessel: 40,000 lt per hour flow for Nominal rated bags.
  • Side entry inlet connection
  • Available in 304 or 316 stainless steel (316L & Carbon Steel options available)
  • 2" ANSI Inlet and Outlet
  • Buna N™ seals standard (Viton also available)
  • 316 Stainless steel restrainer basket
  • Maximum operating pressure of 10 bar (standard model)

Available Connection Configuration Options

Monarch GAF Bag Filter Housing, Inlet and Outlet Configurations

Standard Vessel codes
316 Stainless Steel
Vessel Code
Material
Connection
Bag Size
FBF-0101-AB10-020A
316
2" ANSI 150# RF Flanges
01 Size - 20,000 lt per hour*
FBF-0102-AB10-020A
316
2" ANSI 150# RF Flanges
02 Size - 40,000 lt per hour*
FBF-0101-AB10-050A
316
2" BSP Threaded
01 Size - 20,000 lt per hour*
FBF-0102-AB10-050A
316
2" BSP Threaded
02 Size - 40,000 lt per hour*
* Flow rate for water when fitted with a Nominal rated filter bag
Standard Vessel codes
304 Stainless Steel
Vessel Code
Material
Connection
Bag Size
FBF-0101-BB10-020A
304
2" ANSI 150# RF Flanges
01 Size - 20,000 lt per hour*
FBF-0102-BB10-020A
304
2" ANSI 150# RF Flanges
02 Size - 40,000 lt per hour*
FBF-0101-BB10-050A
304
2" BSP Threaded
01 Size - 20,000 lt per hour*
FBF-0102-BB10-050A
304
2" BSP Threaded
02 Size - 40,000 lt per hour*
* Flow rate for water when fitted with a Nominal rated filter bag



Contact us for other material options e.g. 316L, Carbon Steel etc.

Product Code
Description
KIT-FBF-V
All Viton O Ring kit inc:
Lid and Inlet
KIT-FBF-BN
All Buna-N O Ring kit inc:
Lid and Inlet
FBF-ACC
All Stainless Steel Accessories kit inc:
Vent, Gauge, Drain
F4A44813
Bag Support basket 01
316 Stainless Steel (7"dia x 17" long)
F4A44812
Bag Support basket 02
316 Stainless Steel (7"dia x 32" long)
F4A44656
Bag Lock/Positioner 01
316 Stainless Steel
F4A44657
Bag Lock/Positioner 02
316 Stainless Steel
F4A44781
Displacement Ballon 01
316 Stainless Steel
F4A44782
Displacement Ballon 02
316 Stainless Steel
F4A44327
Eye Bolt set M16 x 65mm- Zinc Plated
(1 set inc: 1 x nut, 1 x bolt, 1 x pin, washers & clips)
F4A6000
Eye Bolt set M16 x 65mm- 304 Stainless Steel
(1 set inc: 1 x nut, 1 x bolt, 1 x pin, washers & clips)
F4A44817
Support Legs - Stainless Steel
  • Automotive
  • Food and Beverage
  • Chemical Processing
  • Paints, Inks, Resins and Coatings
  • Electronics
  • Petrochemicals
  • Municipal Water Treatment
  • Industrial Water Treatment
  • Pulp and Paper
  • Pharmaceutical
  • Lubricants, Metalworking Fluids
  • Solvents
