Eaton GAF SIDELINE Bag Filter Housing or Bag Filter Vessel

Eaton GAF SIDELINE Bag Filter Housing or Bag Filter Vessel

Mid-priced filter housings for most applications.

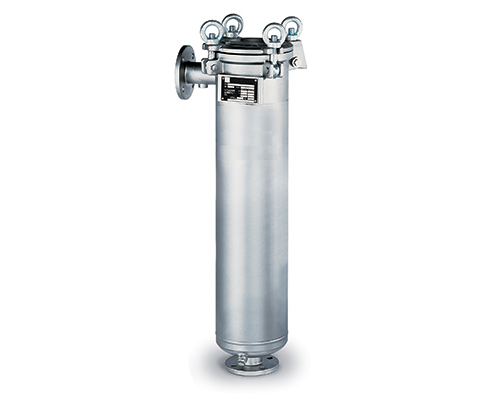

A SIDELINE vessel is a full-featured investment-cast filter vessel. The standard unit has a bead blasted finish that makes cleaning easy and a cover that can be easily adapted to different opening directions are among SIDELINE’s many value added features.

With SIDELINE you can take advantage of all of the benefits of stainless steel at a carbon steel price. Even if your process doesn’t require stainless steel now, you can take advantage of stainless steel’s superior corrosion resistance and consistency of performance. The Sideline housing can be fitted with a wide variety of filter bags, micron sizes and filter materials.

  • Available For filter bags sizes 01 and 02.
  • (Sizes 03 and 04 please refer to Miniline Series)
  • 01 Size Vessel: 20,000 lt per hour flow for Nominal rated bags.
  • 02 Size Vessel: 40,000 lt per hour flow for Nominal rated bags.
  • Side entry inlet connection
  • Available in 304 or 316 stainless steel
  • 2" ANSI Inlet and Outlet (3" units on request)
  • Buna N™ seals standard (Viton also available)
  • 316 Stainless steel restrainer basket or bag support basket
  • Maximum operating pressure of 10 bar (standard model)
  • Steam jacket (Optional)

Contact us regarding 2" BSP and 3" BSP options

Available Connection Configuration Options

Monarch GAF Bag Filter Housing, Inlet and Outlet Configurations

Standard Vessel codes
316 Stainless Steel
Vessel Code
Material
Connection
Bag Size
SBF-0101-AB10-020A
316
2" ANSI 150# RF Flanges
01 Size - 20,000 lt per hour*
SBF-0102-AB10-020A
316
2" ANSI 150# RF Flanges
02 Size - 40,000 lt per hour*
SBF-0101-AB10-030A
316
3" ANSI 150# RF Flanges
01 Size - 20,000 lt per hour*
SBF-0102-AB10-030A
316
3" ANSI 150# RF Flanges
02 Size - 40,000 lt per hour*
* Flow rate for water when fitted with a Nominal rated filter bag
Standard Vessel codes
304 Stainless Steel
Vessel Code
Material
Connection
Bag Size
SBF-0101-BB10-020A
304
2" ANSI 150# RF Flanges
01 Size - 20,000 lt per hour*
SBF-0102-BB10-020A
304
2" ANSI 150# RF Flanges
02 Size - 40,000 lt per hour*
SBF-0101-BB10-030A
304
3" ANSI 150# RF Flanges
01 Size - 20,000 lt per hour*
SBF-0102-BB10-030A
304
3" ANSI 150# RF Flanges
02 Size - 40,000 lt per hour*
* Flow rate for water when fitted with a Nominal rated filter bag



Contact us for other material options e.g. 316L, Carbon Steel etc.

Product Code
Description
KIT-SBF-V
All Viton O Ring kit inc:
Lid and Inlet
KIT-SBF-BN
All Buna-N O Ring kit inc:
Lid and Inlet
SBF-ACC
All Stainless Steel Accessories kit inc:
Vent, Gauge, Drain
F4A44813
Bag Support basket 01
316 Stainless Steel (7"dia x 17" long)
F4A44812
Bag Support basket 02
316 Stainless Steel (7"dia x 32" long)
F4A44656
Bag Lock/Positioner 01
316 Stainless Steel
F4A44657
Bag Lock/Positioner 02
316 Stainless Steel
F4A44781
Displacement Ballon 01
316 Stainless Steel
F4A44782
Displacement Ballon 02
316 Stainless Steel
F4A44328
Eye Bolt set M20 x 100mm- Zinc Plated
(1 set inc: 1 x nut, 1 x bolt, 1 x pin, washers & clips)
F4A44668
Eye Bolt set M20 x 100mm- 304 Stainless Steel
(1 set inc: 1 x nut, 1 x bolt, 1 x pin, washers & clips)
F4A44816
Support Legs - Stainless Steel
  • Automotive
  • Food and Beverage
  • Chemical Processing
  • Paints, Inks, Resins and Coatings
  • Electronics
  • Petrochemicals
  • Municipal Water Treatment
  • Industrial Water Treatment
  • Pulp and Paper
  • Pharmaceutical
  • Lubricants, Metalworking Fluids
  • Solvents
