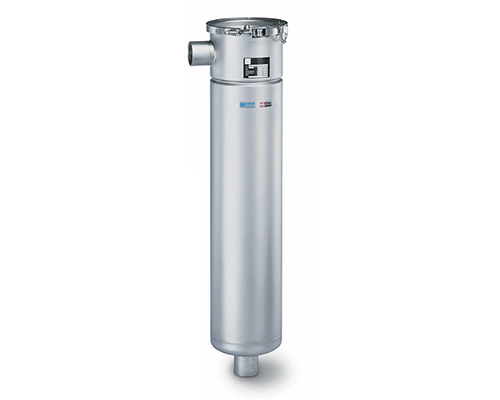

Eaton GAF ECOLINE Bag Filter Housing or Bag Filter Vessel

Eaton GAF ECOLINE Bag Filter Housing or Bag Filter Vessel

Lightweight, economical filter housings.

For cost sensitive applications, you can now take advantage of an ECOLINE stainless steel vessel from Eaton at a price that compares to carbon steel. Even if your application may not now require stainless steel, you can still take advantage of the superior corrosion resistance and consistent performance you’ll get over the years.

The ECOLINE saves operating costs, too, with its simple, easy to operate V-clamp closure that makes bag change outs quick and easy.

  • For filter bags sizes 01 and 02.
  • Sizes 03 and 04 please refer to Miniline Series.
  • 01 Size - 20,000 lt per hour flow for Nominal rated bags.
  • 02 Size - 40,000 lt per hour flow for Nominal rated bags.
  • Side entry inlet connection
  • Available in 304 or 316 stainless steel
  • 2" BSP Inlet and Outlet
  • Buna N™ seals standard (Viton also available)
  • 316 Stainless steel restrainer basket
  • Maximum operating pressure of 6 bar (standard model)
Standard Vessel codes
316 Stainless Steel
Vessel Code
Material
Connection
Bag Size
EBF-0101-AC06-050B
316
2" BSP Threaded
01 Size - 20,000 lt per hour*
EBF-0102-AC06-050B
316
2" BSP Threaded
02 Size - 40,000 lt per hour*
* Flow rate for water when fitted with a Nominal rated filter bag
Standard Vessel codes
304 Stainless Steel
Vessel Code
Material
Connection
Bag Size
EBF-0101-BB06-050B
304
2" BSP Threaded
01 Size - 20,000 lt per hour*
EBF-0102-BC06-050B
304
2" BSP Threaded
02 Size - 40,000 lt per hour*
* Flow rate for water when fitted with a Nominal rated filter bag



Contact us for other material options e.g. 316L, Carbon Steel etc.

Product Code
Description
KIT-EBF-V
All Viton O Ring kit inc:
Lid and Inlet
KIT-EBF-BN
All Buna-N O Ring kit inc:
Lid and Inlet
EBF-ACC
All Stainless Steel Accessories kit inc:
Vent, Gauge, Drain
F4A44813
Bag Support basket 01
316 Stainless Steel (7"dia x 17" long)
F4A44812
Bag Support basket 02
316 Stainless Steel (7"dia x 32" long)
F4A44656
Bag Lock/Positioner 01
316 Stainless Steel
F4A44657
Bag Lock/Positioner 02
316 Stainless Steel
F4A44781
Displacement Ballon 01
316 Stainless Steel
F4A44782
Displacement Ballon 02
316 Stainless Steel
F4A44327
Eye Bolt set M16 x 65mm- Zinc Plated
(1 set inc: 1 x nut, 1 x bolt, 1 x pin, washers & clips)
F4A6000
Eye Bolt set M16 x 65mm- 304 Stainless Steel
(1 set inc: 1 x nut, 1 x bolt, 1 x pin, washers & clips)
F4A44817
Support Legs - Stainless Steel
  • Automotive
  • Food and Beverage
  • Chemical Processing
  • Paints, Inks, Resins and Coatings
  • Electronics
  • Petrochemicals
  • Municipal Water Treatment
  • Industrial Water Treatment
  • Pulp and Paper
  • Pharmaceutical
  • Lubricants, Metalworking Fluids
  • Solvents
