ESLC-20 Cartridge Filter-Strainer

Model:
ESLC-20
Application:
Liquid Filtration
Colour:
Self
Media:
20" Cartridges or Elements

Brochure and Datasheet Downloads

  • Operating pressure to 21 bar permits use in wide range of applications
  • In-line inlet and outlet connections for easy installation
  • Quick-opening design with rugged cast clamp for fast filter change-outs
  • Stainless steel for durable and corrosion resistance

The ESLC Cartridge-Strainer Housing is suitable for low flow rates. With a single die-casted top piece design, the ESLC in-line filter can be easily connected to the pipeline directly.

The filter element can be replaced by only removing the bottom housing, featuring simple maintenance with no leakage. A drain valve is located at the bottom for liquid discharge.

Monarch Strainers and Filters are supported by our General Engineering Workshop in Brisbane. We also manufacture in Brisbane a comprehensive range of replacement baskets and screens.

Housing Codes:
Material 304: ESLC-E207B21025B
Material 316L: ESLC-S207B21025B
Material:
304 or 316L Stainless Steel
Seals:
Buna-N (Standard) EPDM, Silicone & Viton options
Pressure:
21 Bar
Closure:
Tri Clamp
Connections:
1" BSP Inlet & Outlet
1/4" BSP Vent Port
1/4" Drain Port
Documentation Available
  • Pressure Test Report
  • Quality Certificate
  • As Built Drawing
Model Cartridge Connection L1 L2 Weight
ESLC-20 20" 1" BSP 122 mm 634 mm 6.0 kgs
Factors to be Taken Account of when Selecting a Strainer:
  • Fluid type
  • Flow rate
  • Viscosity
  • Temperature – operating and design
  • Pressure – operating and design
  • Degree of filtration required
  • Connection type i.e. flanged PN16, ASA150, screwed BSP, NPT
  • Any special requirements i.e. heating jacket, magnets, mounting brackets, dp indicator/switch etc.

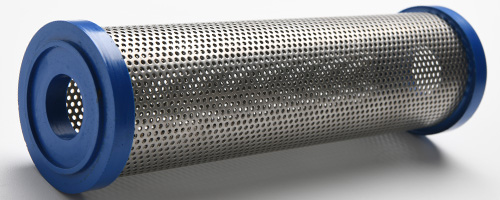

Perforated Screen Only
Code Example: CART 20 - A - 0500-304 - V

Product: (CART)
Monarch manufactured cartridge element
Length: (20)
10" cartridge
End Cap: (e.g. A)
A = Polyethylene moulded ends
AS = 316 Stainless ends
Seal: (e.g. V)
V = Viton
B = BunaN
304 Perforated Screen: (e.g. 0500-304)
0500-304 = 0.5mm perforations
0800-304 = 0.8mm perforations
1000-304 = 1.0mm perforations
1500-304 = 1.5mm perforations
2000-304 = 2mm perforations
3000-304 = 3mm perforations
4000-304 = 4mm perforations
5000-304 = 5mm perforations
316 Perforated Screen:
0800-316 = 0.8mm perforations
1100-316 = 1.1mm perforations
1500-316 = 1.5mm perforations
2000-316 = 2mm perforations
3000-316 = 3mm perforations
4000-316 = 4mm perforations
5000-316 = 5mm perforations

Perforated Support with Mesh Layer
Code Example: CART 20 - A 50 - 0810-316 - V

Product: (CART)
Monarch manufactured cartridge element
Length: (20)
10" cartridge
End Cap: (e.g. A)
A = Polyethylene moulded ends
AS = 316 Stainless ends
Seal: (e.g. V)
V = Viton
B = BunaN
Perforated Support layer: (e.g. 50)
50 = 3mm perforations, 316 S/S (Material has 50&percent; open area)

63 = 5mm perforations, 304 S/S (Material has 63&percent; open area)
316 Woven Wire Mesh: (e.g. 0810-316)
0810-316 = 810 Micron
0530-316 = 530 Micron
0415-316 = 415 Micron
0310-316 = 310 Micron
0260-316 = 260 Micron
0210-316 = 210 Micron
0190-316 = 190 Micron
0150-316 = 150 Micron
0130-316 = 130 Micron
0100-316 = 100 Micron
0080-316 = 80 Micron
316 Hollander Weave:
5/14 = 5µ Nominal, 14µ Absolute
10/18 =10µ Nominal, 18µ Absolute
15/26 =15µ Nominal, 26µ Absolute
25/38 = 25µ Nominal, 38µ Absolute
35/45 = 35µ Nominal, 45µ Absolute

Cartridge Filters

Cartridge filters can be used for a wide variety of applications with varied flow rates that require sub-micron retention rating, including food and beverage, chemicals, paint and the filtration of acids and bases. Cartridge filtration can also be a suitable choice for pharmaceutical and ultra-pure water applications.

Melt-Blown Cartridge
