PVDF Simplex Basket Strainer
Introducing our Industrial Simplex Basket Liquid Strainer crafted from PVDF material, engineered to meet the highest standards of durability, efficiency, and reliability in liquid filtration processes.
Designed for heavy-duty industrial applications, this strainer is the ultimate solution for effectively removing contaminants and debris from liquid streams, ensuring optimal performance and prolonging the lifespan of your equipment.
Constructed from PVDF (Polyvinylidene Fluoride), renowned for its exceptional chemical resistance, thermal stability, and mechanical strength, this material ensures longevity even in the most demanding environments, including corrosive and high-temperature conditions.
Featuring a simplex basket design, this strainer offers straightforward operation and maintenance. Its large-capacity basket provides ample filtration area, minimizing downtime for cleaning and maximizing uninterrupted workflow. Installation versatility is paramount, and our strainer offers multiple connection options to seamlessly integrate into your existing pipeline system, ensuring a hassle-free setup process.
- Stainless Steel Strainer Baskets
- Pressure Differential Gauge and Switch
- Baskets Available with Mesh Liner
- True Union
- Ergonomic Hand-Removable Cover
- In-Line or Loop Connections
- External Cover Threads
- Integral Flat Mounting Bases
- PVDF Basket Standard Standard
| Code | BSP and DIN Fusion Socket |
| SB5015MT18 | DN15 Natural PVDF Simplex Basket Strainer w/FPM o-rings; BSPT Ends |
| SB5015MS18 | DN15 Platinum GFPP Simplex Basket Strainer w/FPM o-rings; DIN SKT fusion End Connections |
| SB5020MT18 | DN20 Natural PVDF Simplex Basket Strainer w/FPM o-rings; BSPT Ends |
| SB5020MS18 | DN20 Natural PVDF Simplex Basket Strainer w/FPM o-rings; DIN SKT fusion End Connections |
| SB5025MT18 | DN25 Natural PVDF Simplex Basket Strainer w/FPM o-rings; BSPT Ends |
| SB5025MS18 | DN25 Natural PVDF Simplex Basket Strainer w/FPM o-rings; DIN SKT fusion End Connections |
| SB5025MF18 | DN25 Natural PVDF Simplex Basket Strainer w/FPM o-rings; PN10 FLGD Ends |
| SB5032MT18 | DN32 1-1/4" Natural PVDF Simplex Basket Strainer w/FPM o-rings; BSPT Ends" |
| SB5032MS18 | DN32 Natural PVDF Simplex Basket Strainer w/FPM o-rings; DIN SKT fusion End Connections |
| SB5032MF18 | DN32 1-1/4" Natural PVDF Simplex Basket Strainer w/FPM o-rings; PN10 FLGD Ends" |
| SB5040MT18 | DN40 1-1/2" Natural PVDF Simplex Basket Strainer w/FPM o-rings; BSPT Ends" |
| SB5040MS18 | DN40 Natural PVDF Simplex Basket Strainer w/FPM o-rings; DIN SKT fusion End Connections |
| SB5040MF18 | DN40 Natural PVDF Simplex Basket Strainer w/FPM o-rings; PN10 FLGD Ends |
| SB5050MT18 | DN50 Natural PVDF Simplex Basket Strainer w/FPM o-rings; BSPT Ends |
| SB5050MS18 | DN50 Natural PVDF Simplex Basket Strainer w/FPM o-rings; DIN SKT fusion End Connections |
| SB5050MF18 | DN50 Natural PVDF Simplex Basket Strainer w/FPM o-rings; PN10 FLGD Ends |
| Code | NPT and IPS Fusion Socket |
| SB5050T18 | 1/2"Natural PVDF Simplex Basket Strainer w/FPM o-rings; Threaded NPT Ends" |
| SB5050S18 | 1/2"Natural PVDF Simplex Basket Strainer w/FPM o-rings; Socket Fusion (IPS) Ends" |
| SB5075T18 | 3/4" Natural PVDF Simplex Basket Strainer w/FPM o-rings; Threaded NPT Ends" |
| SB5075S18 | 3/4" Natural PVDF Simplex Basket Strainer w/FPM o-rings; Socket Fusion (IPS) Ends" |
| SB5100T18 | 1" Natural PVDF Simplex Basket Strainer w/FPM o-rings; Threaded NPT Ends" |
| SB5100F18 | 1" Natural PVDF Simplex Basket Strainer w/FPM o-rings; Flanged Ends" |
| SB5100S18 | 1" Natural PVDF Simplex Basket Strainer w/FPM o-rings; Socket Fusion (IPS) Ends" |
| SB5125T18 | 1-1/4" Natural PVDF Simplex Basket Strainer w/FPM o-rings; Threaded NPT Ends" |
| SB5125F18 | 1-1/4" Natural PVDF Simplex Basket Strainer w/FPM o-rings; Flanged Ends" |
| SB5125S18 | 1-1/4" Natural PVDF Simplex Basket Strainer w/FPM o-rings; Socket Fusion (IPS) Ends" |
| SB5150T18 | 1-1/2" Natural PVDF Simplex Basket Strainer w/FPM o-rings; Threaded NPT Ends" |
| SB5150F18 | 1-1/2" Natural PVDF Simplex Basket Strainer w/FPM o-rings; Flanged Ends" |
| SB5150S18 | 1-1/2" Natural PVDF Simplex Basket Strainer w/FPM o-rings; Socket Fusion (IPS) Ends" |
| SB5200T18 | 2" Natural PVDF Simplex Basket Strainer w/FPM o-rings; Threaded NPT Ends" |
| SB5200F18 | 2" Natural PVDF Simplex Basket Strainer w/FPM o-rings; Flanged Ends" |
| SB5200S18 | 2" Natural PVDF Simplex Basket Strainer w/FPM o-rings; Socket Fusion (IPS) Ends" |
| Connection | Velocity | Approx Flow Rate lt/hr | |
| DN20 | 3/4" | 5 feet/sec | 1,580 |
| DN25 | 1" | 5 feet/sec | 2,600 |
| DN32 | 1-1/4" | 5 feet/sec | 4,325 |
| DN40 | 1-1/2" | 5 feet/sec | 6,320 |
| DN50 | 2" | 5 feet/sec | 10,560 |
Body/Basket Sizes
The Hayward SB Strainer is based on 4 standard physical body and basket sizes.
- Body size 1 can be fitted with 1/2”, 3/4” or 1” connections.
- Body size 2 can be fitted with 1-1/4”, 1-1/2” or 2” connections.
- Body size 4 can be fitted with 2-1/2”, 3” or 4” connections.
- Body size 6 can be fitted with 6” or 8” connections.
Maximum Flow Rate
The maximum recommended fluid velocity through this Hayward Product is five feet per second (5 ft/s), relative to the connection size fitted. Higher fluid velocity can result in damage due to the water hammer effect.

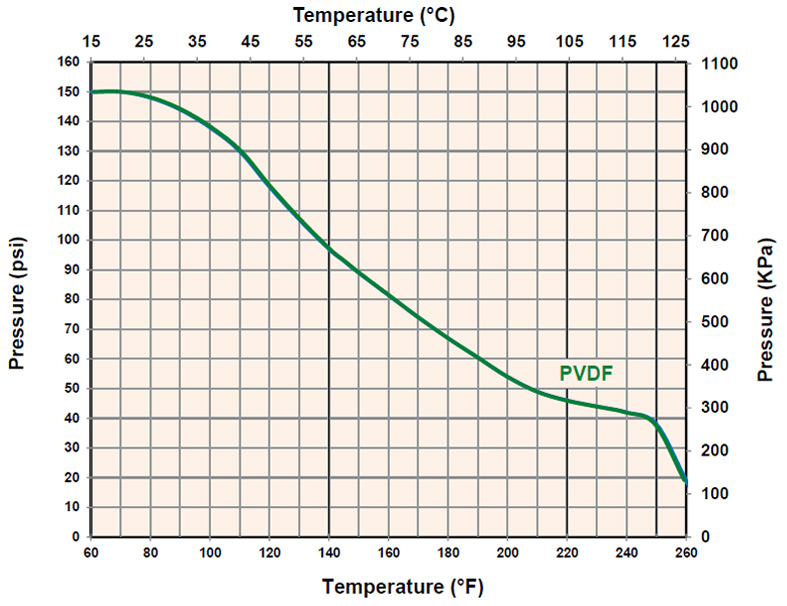

Operating Temperature vs Pressure Chart
The effect of temperature on plastic piping systems must be considered when the systems are initially designed. The pressure rating of plastic systems must be reduced with increasing temperature.
Maximum operating pressure is dependent upon material selection as well as operating temperature.
Before installing any product, consult the product literature for Pressure vs. Temperature curves to determine any operating pressure or temperature limitations.
Basket Options
