Multi Bag Filter Housing for liquid filtration

QMFB Multi Bag Filter Housing

Model:

QMBF

Application:

Liquid Filtration

Media:

Nominal, NMO & Absolute Bags & Cartridges

Bag Size 01:

20 m³/hr, depending on element and fluid viscosity
multiplied by the number of bag filter chambers

Bag Size 02:

40 m³/hr, depending on element and fluid viscosity
multiplied by the number of bag filter chambers

Manufacturing

ASME, In accordance to ISO 9001 Quality Management System, "U Stamp" Available

Quick Opening Design Improves Work Efficiency

QMBF Quick Open series multi-bag filter housings feature a self-balancing V-clamp locking mechanism, a break-through from conventional designs. Its single-handed, user-friendly operation makes this feature an ideal choice for applications with high flow rates requiring frequent element change-outs. Minimal downtime reduces operating costs and smoothen batch processes.

Efficiency is highly improved by a fully-interlocked pressure release which ensures safety in all conditions. With its rugged, corrosion-free V-clamp and proprietary screw-drive mechanism, the housing provides users with years of service.

Specifications
Features
Standard Units
Downloads
Quote Request
Related Products

Material:

304, 304L, 316, 316L

Seals:

Buna-N, EPDM, Silicone, Viton, Teflon, Teflon Encapsulated Viton Rubber, Teflon Encapsulated Silicone, Neoprene, Butyl Rubber

Connections:

DIN, ANSI, Table

Pressure:

10 bar (145 psi) @ 150°C

Bag Sizes:

01 and 02
(01 in 3 & 4 bag units only)

Flow Rates:

Up to 920 m³/h

Options:

U Stamp Certification
Polished Surfaces
Stainless Fine Mesh Baskets
Connection orientation
Hinge position

Features

Self-balancing V-clamp locking mechanism for fast and easy operation.
Single-handed operation, ideal for applications requiring frequent bag change-outs.
Minimal downtime reduces operating costs.
Fully interlocked design for safety under any conditions.
Proprietary screw-drive for years of smooth service.
Rugged, corrosion-free V-clamp ensure cost-effective bag filtration.

Applications

Pulp and Paper
Food and Beverage
Metal Working Fluids
Chemical Processing
Paints, Inks, Resins and Coatings
Automotive
Electronics
Pharmaceutical
Petrochemicals

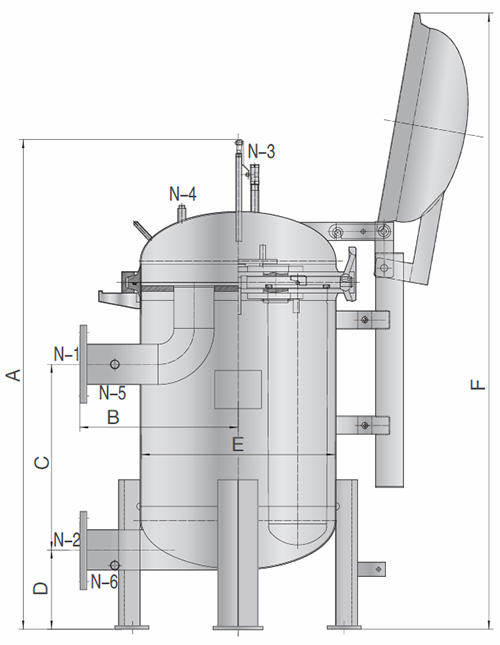

mm	3 bags	4 bags	6 bags	8 bags
A	1420	1342	1495	1468
B	400	450	520	600
C	520	527	450	528
D	250	225	300	200
E	500	550	600	750
F	1806	1781	1917	2029
G	475	525	580	735
N1	DN80	DN100	DN150	DN150
N2	DN80	DN100	DN150	DN150
H	Ø18	Ø18	Ø18	Ø18

mm	12 bags	17 bags	23 bags
A	1612	1640	1700
B	680	750	820
C	528	450	535
D	220	250	250
E	950	1050	1200
F	2256	2421	2586
G	930	1040	1195
N1	DN200	DN250	DN250
N2	DN200	DN250	DN250
H	Ø24	Ø24	Ø24

Brochure and Datasheet Downloads

QMBF Brochure

To assist us in providing a quotation or recommendation, please provide as much detail of your application as possible.

Contact Information

Please provide detailed contact information.

Special Requirements

Please provide details of any special requirements, lead times, certification or documentation etc.

Application

Liquid Type
Flow rate
Viscosity
System Pressure
Temperature
Micron Removal Size
Solids Loading
Particle Type (hard, soft, sticky, fibrous)

Equipment Details

Material
Connection Type
Connection Size
Seal Type

Filter Media
