Two-stage Liquid Separators

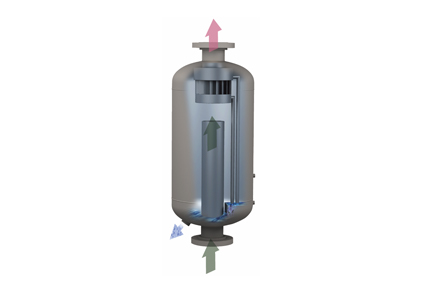

Designed for liquid slugs or heavy liquid loads, the Type 10-R Series gas liquid separators, formerly Wright Austin, can be provided with a large reservoir to meet liquid holdup requirements.

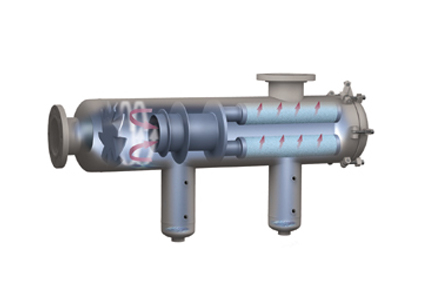

The two-stage Type 31-LSF Gas Liquid Separator/Filter, suitable for applications requiring extremely fine entrainment removal. The first stage is a centrifugal separator that removes slugs and heavy liquid loads. The second stage uses coalescing filters to remove nearly all remaining droplets plus particles as small as 0.3 microns from air, gas and steam processes.

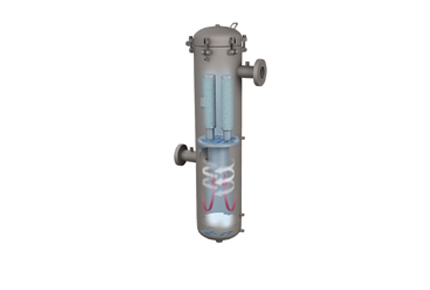

The two-stage Type TF Gas/Liquid Separator/Filter, suitable for applications requiring extremely fine entrainment removal. The first stage is a centrifugal separator that removes slugs and heavy liquid loads. The second stage uses coalescing filters to remove nearly all remaining droplets plus particles as small as 0.3 microns from air, gas and steam processes.
