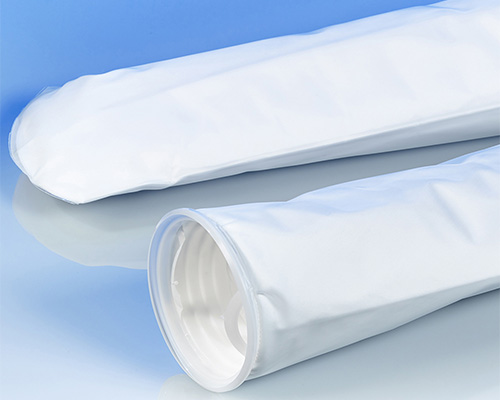

Progaf filter bags for high efficiency liquid filtration

Series:

ProGaf Series

Application:

Liquid Filtration

Materials:

Melt Blown Polypropylene

Bag Size:

02

Plastic Top Seals

PROGAF filter bags constitute a new, high-performance alternative for applications requiring absolute filtration. The multistage filtration, with filter material that gets finer from layer to layer, provides optimum efficiency (greater than 99.9%) and a long operating life.

Order Information
Technical
Applications
Downloads

Material:

PGF - Melt Blown Polypropylene

Micron Rating:

(50) 1 μm @ >99.9% efficiency

(51) 2 μm @ >99.9% efficiency

(55) 12 μm @ >99.9% efficiency

Cover Layer:

E - Polypropylene Mesh

Size:

02 - Ø178mm x 810mm

Seal Ring

E - Welded (Polypropylene)

Retention Type

Refer efficiency chart

Code Example:

PGF-51-EO2E
Minium order quantity will apply

FDA/EC Conformity

All polypropylene materials used in manufacturing comply with the regulations of the Food and Drug Administration (FDA), title 21 of the Code of Federal Regulations Section 177, and EC Regulations 1935/2004 and EC Directive 2002/72/EC, as applicable for food and beverage contact.

Filter Area:

02 Size - 0.48 m²

Max. Differential Pressure:

2.5 bar (36 psi)

Recommended Change Out:

≈ 0.8 to 1.5 bar (11 to 22 psi)

Max. Operating Temperature:

PO - <90°C

Max. Flow Rates:

02 Size - 10 m³/h
For fluids with a dynamic viscosity of 1 mPa∙s @ 20 °C

Model	Particle size removal efficiency (μm)
Size 02	>60%	>90%	>95%	>99%	>99.9%	*Δ P Bar
50	-	-	0.15	1.5	1	0.25
51	0.15 (>80%)	0.3	0.45	0.5	2	0.22
55	1	3	6	10	12	0.05
*Δp Bar @ 10m³ Size 02 bag

Automotive coating systems
Electrophoretic paint and plating
Lubricating or hydraulic oils
Chemicals
Inks
Edible oils and juices
Solvents
Water and many more

Brochure and Datasheet Downloads

Progaf Series Filter Bags
