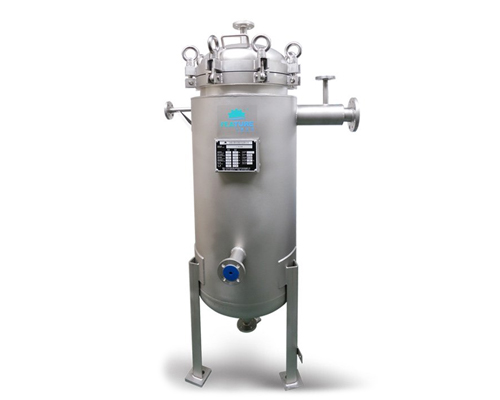

HD Series Cartridge Filter Hounigs

Model: HD Series

Material: Carbon Steel, 304, 316 & 316L Stainless Steel (others on request)

Connections: ASME, DIN, JIS & GB

Pressure Rating: 6, 10, 16 or 26 bar

Max Temperature: 150°C



Feature-Tec HD series of code-designed filter housings provide industrial users with the rugged dependability of all-welded,
certified pressure vessels. The range includes models from 1 to 242 standard 2.5” cartridges for the full range of end connections.

HD Series Features

  • Code design and construction in carbon steel and 304 and 316L stainless steel
  • Available in four pressure classes to cover the full range of industrial applications
  • Stamping upon customer's request to most major design codes
  • Rugged element mounting for simple pre-filtration to sub-micron removal
  • Element compression independent from housing closure ensures full element sealing integrity

HD Series Benefits

  • Rigid international design standards assure safe operation under all conditions
  • Dangerous, lethal or carcinogenic liquids can be safely filtered without risk to operational personnel
  • Eye-bolt or Speedo® closures offer quick-opening options to eliminate down-time
  • Fully-welded construction offers flexibility for optional customer-required modifications

Codes of Construction

  • Industrial Best Practices
  • ASME Sec. VIII, Div. 1
  • PED
  • GB/10
Overview of Standard Models



Shell material options include:
Carbon Steel, 316L stainless steel, 304 stainless steel, Duplex and super-duplex steel, Others upon request

Internals:
316 stainless steel

Body Flange Gasket:
Buna, Viton, EPDM, FEP/Viton

  Davit Lift Flat Style



Shell
Dia.
No. of
Elements
Type Connections Flow
Range
Overall height Bolt
Circle
(mm) 2.5" Dia     (m³/hr) 20" 30" 40" 50" 60" (mm)
168 1 Flat DN25 4-10 1020 1270 1520 - - 322
219 7 Flat DN50 15-35 1020 1270 1520 - - 278
300 12 Flat DN80 21-53 1051 1285 1585 1795 2085 280
400 21 Flat DN100 36-90 1126 1360 1660 1870 2160 380
500 35 Domed DN150 63-158 1262 1496 1796 2006 2296 480
550 45 Domed DN150 105-263 1275 1509 1809 2019 2309 530
600 54 Domed DN200 135-338 1398 1632 1932 2142 2432 580
750 89 Domed DN200 162-405 1436 1670 1970 2180 2470 730
950 145 Domed DN250 267-668 1610 1844 2144 2354 2644 930
1050 180 Domed DN250 435-1088 1622 1856 2156 2366 2656 1030
1200 242 Domed DN300 540-1350 1796 2030 2330 2540 2830 1180
Flow Rates Stated for a fluid at 1 cp viscosity, such as clean water



Standard Element Styles

Code Style/Type
1 Integrated flat metal gasket
2 226 / flat end cap
3 222 / flat end cap
4 226 / fin end
5 222 / metal strengthened ring/fin end
6 222 / fin end
7 DOE/ double opened end
8 SOE/ flat gasket 020
  • General particulate removal service
    Catalyst and granular carbon removal
    Pre-filtration for membrane filtration
    Lined versions for seawater filtration
